ETL Listed Sports Lighter TAURU
Applications：
Field Houses.
Airport.
Indoor Stadiums.
LED Driver:
Universal Input Voltage 120-277 Vac 50/60 Hz.
Optional Input Voltage 249-528 Vac 50/60 Hz.
A line to Earth 6KV Surge Protection.
IP67 Rated LED Driver.
Power Factor > 0.90.
THD < 20%.
CRI > 70.
CCT : 4000K/5000K.
Description
ETL Listed Sports Lighter TAURU Features:
ETL Listed Sports Lighter TAURU use High-pressure die-cast, Powder Coated Aluminum Housing.
Polycarbonate Optical Lens: 15°Flood optic,40°Flood optic 110°Flood optic, Type V.
Yoke Mount standard, U Bracket for optional.
Light shield for optional.
Lightning protector for optional.
Long-life, high-efficiency surface mounting LEDs.
L70>50,000 Hours Rated Lifespan.
5-year Warranty.
Ambient Temperature -35 to 40 °C.
Fixture Protection Class IP66.
ETL Wet Location Listed.

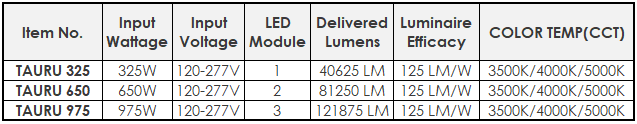

ETL Listed Sports Lighter TAURU Specifications:
Luminaire Efficacy: 125 LM/W.
CCT: 3500K/4000K/5000K.
TAURU325: Input Wattage 325W, Input Voltage 120-277V, LED module: 1, Delivered Lumens： 40625LM.
TAURU650: Input Wattage 650W, Input Voltage 120-277V, LED module: 2, Delivered Lumens： 81250LM.
TAURU975: Input Wattage 975W, Input Voltage 120-277V, LED module: 3, Delivered Lumens： 121875LM.
TAURU Shipping Data:
TAURU325: Package: 72*35.5*28 CM/1 pcs. Approximate Net Weight: 18 KG.
TAURU650: Package: 72*61.5*28 CM/1 pcs. Approximate Net Weight: 37 KG.
TAURU975: Package: 72*86.5*28 CM/1 pcs. Approximate Net Weight: 56.5 KG.

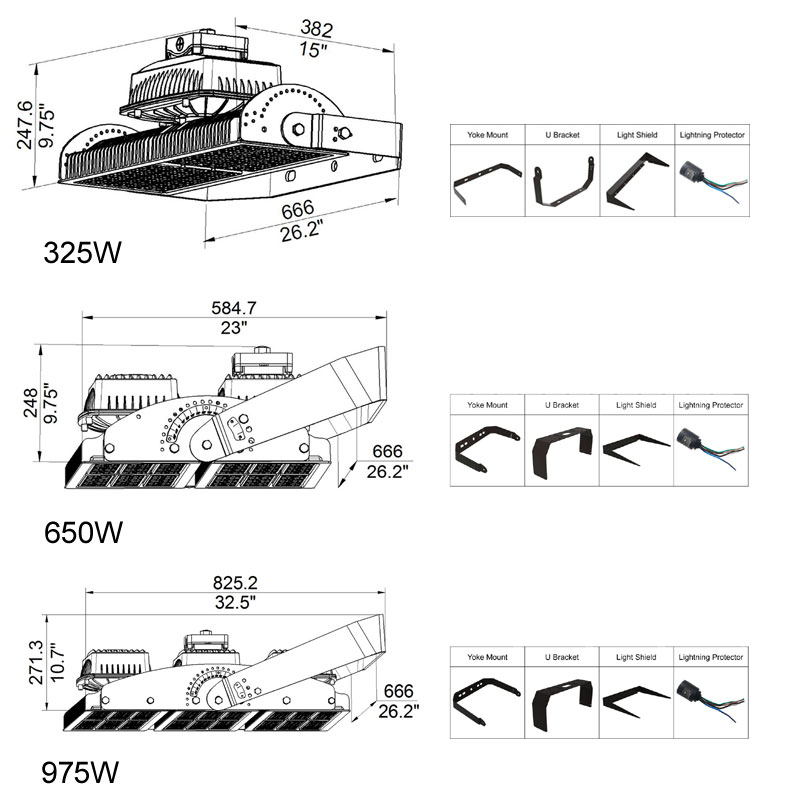

ETL Listed Sports Lighter TAURU Parts option:
Yoke Mount / U Bracket / Light Shield / Lightning Protector.

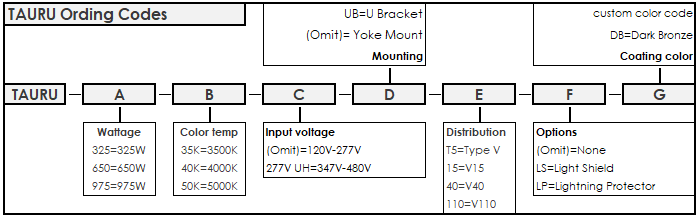

TAURU order code:
TAURU-A-B-C-D-E-F-G
A: Wattage: 325=325W, 650=650W, 975=975W.
B: Color temperature：35K=3500K, 40K=4000K, 50K=5000K.
C: Input voltage: (Omit)=120V-277V, 277V UH=347V-480V.
D: Mounting: (Omit)= Yoke Mount, UB=U Bracket.
E: Distribution: T5=Type V, 15=V15, 40=V40, 110=V110.
F: Options: (Omit)=None, LS=Light Shield, LP=Lightning Protector.
G: Coating color: DB=Dark Bronze. (custom color code)
Typical order LED lighting example:
TAURU-325-50K-40-DB.
Order TAURU 325W, CCT: 5000K, 120V-277V, Yoke Mount, Distribution: V40, Dark Bronze.
Other:
Classic Design + Advanced Led Technology For 1000w Hid Sports Replacements.
High-quality manufacturing and workmanship for the classic ball field.
25 years of manufacturing expertise.
High-output lumen light engine.
Complete pole + bracket + fixture assembly options up to 50ft.
Perfect for budget minded 1000w replacements.
CISSR offers a wide range of high-powered LED sport lighters. These fixtures are designed to provide even lighting over your outdoor area or sports court. We know that every sport lighting project is unique; our team is prepared to provide close attention to detail necessary to get the job done right.
