100-180W LED Street Lighting

High ways, primary streets, throughways, secondary streets, driver ways, residential areas, parking lots, gardens and so on.
Environmental humidity: 10%-90%.
Environmental temperature: +50 to -30 Celsius.
Lifetime:50000 hours.
Input voltage: AC85-265v /50-60Hz.
Color temperature: 3000-3300K, 4000-4500K, 5000-5500K,6000-6500K is available.
CRI>75.
PF>0.95
Materials: Aluminum.
IP grade: IP 65.
Colour: Gray or other.
Warranty: 2 years.

Description

Order SKU list:

LED street lighting SKU no.
Order SKU: 168511001. 100W/12000 lm. Install diametre is 60mm. Advice height 7-9m. Products size 551*244*193mm.
Order SKU: 168511002. 150W/18000 lm. Install diametre is 60mm. Advice height 10-12m. Products size 651*255*193mm.
Order SKU: 168511003. 180W/21600 lm. Install diametre is 60mm. Advice height 12-14m. Products size 810*360*155mm.
Driver brand option.

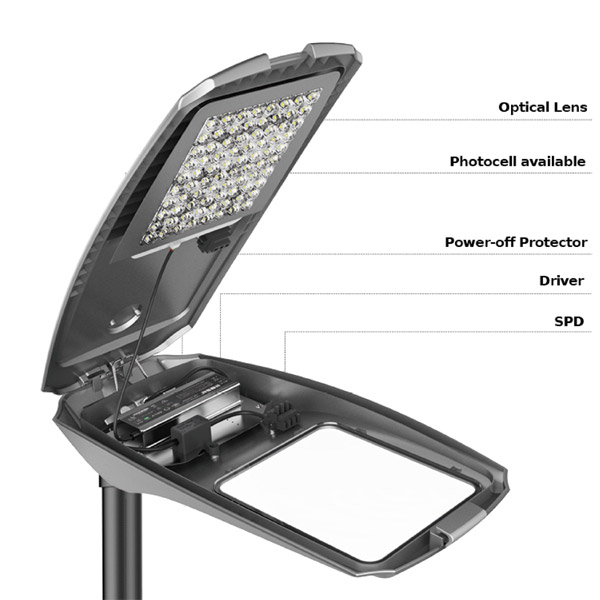

LED street lighting features:

Module optical lens design that enhances the heat pin performance of the fixture.
The stronger body with high-pressure die-cast aluminium alloy housing with less weight ensures impact grade reaches>IK09
High-efficiency coatings, paint and metal parts successfully pass 600 hours salt spray test.
High transparent optical lens and tempered glass, different types lens for choice.
With surge protector, the lamp can reach Class II (10kv) or Class II.
Enough space for installing more devices like Zigbee controller /wireless control system to establish smart city operation for energy conservation and environmental protection.
Internal components are configured according to customer requirement.
Customized configuration.
Daylight sensor control/ 1-10v dimming driver / timing control / solar control / nema socket.
