UL/DLC Listed LED Shoebox Light SL02
High ways, primary streets, throughways, secondary streets, driver ways, residential areas, parking lots, gardens and so on.
Environmental humidity: 10%-90%.
Environmental temperature: +50 to -30 Celsius.
Lifetime:50000 hours.
Input voltage: Meanwell AC90-305v /50-60Hz. or Sosen AC100-277v/ 50-60Hz.
Color temperature: 3000-3300K, 4000-4500K, 5000-5500K,6000-6500K is available.
CRI>75.
PF>0.95
Materials: Aluminum.
IP grade: IP 65.
Colour: Dark Gray or other.
Warranty: 5 years.
Description

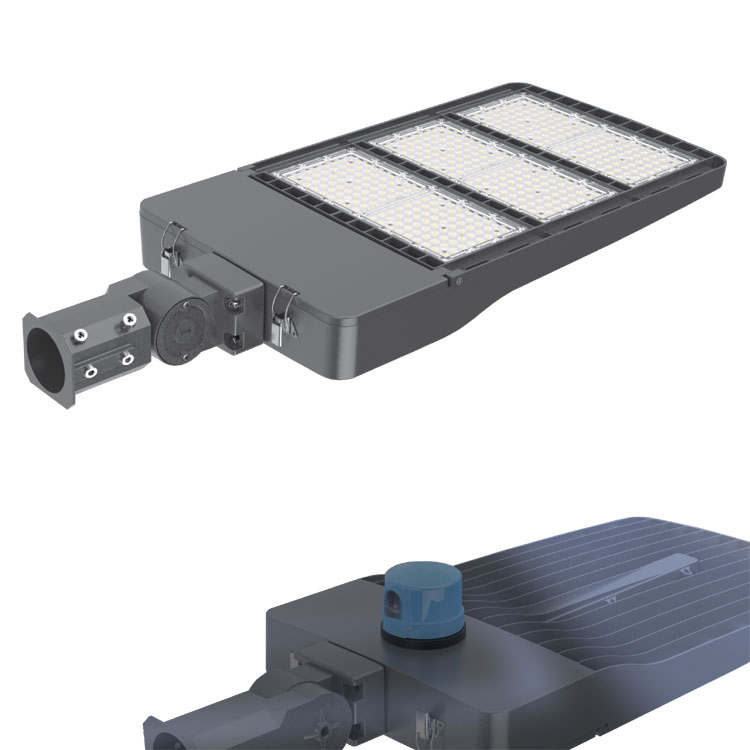

UL/DLC Listed LED Shoebox Light SL02 Series.
UL/DLC Listed LED Shoebox Light SL02 order SKU no.

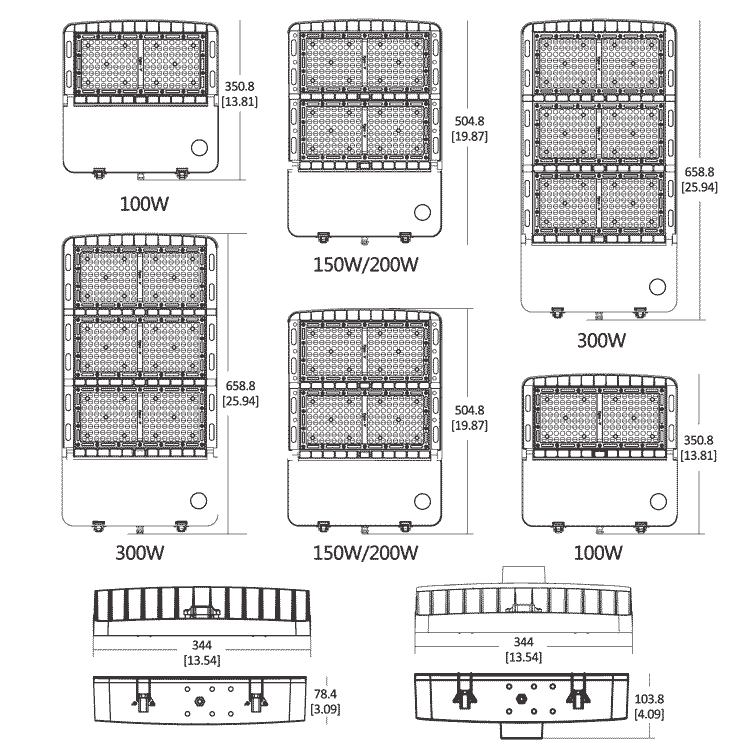

Order SKU: 168574005. 100W/11500 lm. Products size 350.8*343*78.4mm; (144 pcs 3030 LED). G.W is 7.6 kg.
Order SKU: 168574006. 150W/17250 lm. Products size 504.8*344*77.5mm; (216pcs 3030 LED). G.W is 10.2 kg.
Order SKU: 168574007. 200W/23000 lm. Products size 504.8*344*77.5mm; (288 pcs 3030 LED). G.W is 10.2 kg.
Order SKU: 168574008. 300W/34500 lm. Products size 658.8*344*77.5mm; (432 pcs 3030 LED). G.W is 11.6 kg.

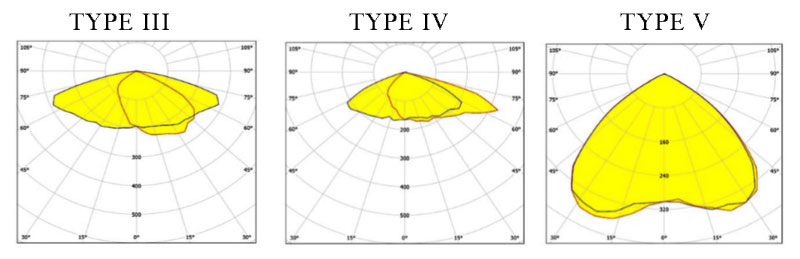

Beam angle: TYPE III or TYPE IV or TYPE V.
LED brand: Lumileds 3030.
Driver: Meanwell (90-305v) or Sosen (100-277v).
SKD LED lighting fixtures available.
Lease kindly order these adapters separately according to your exact requirement.

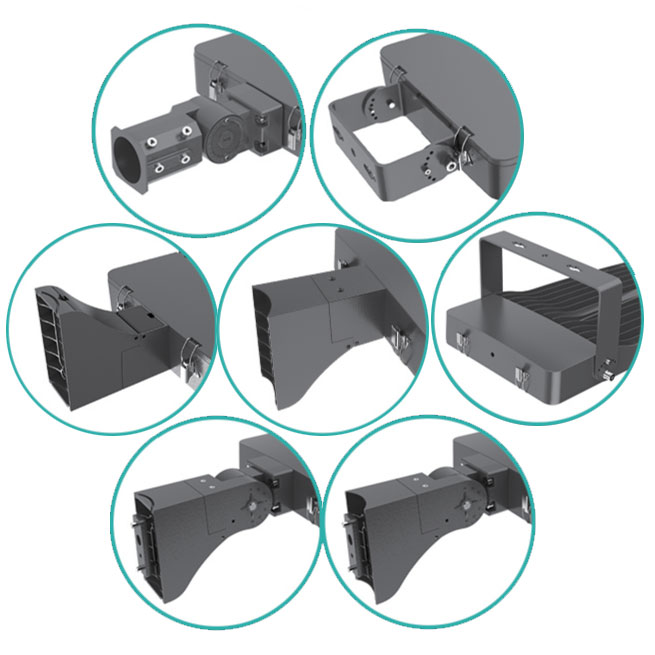

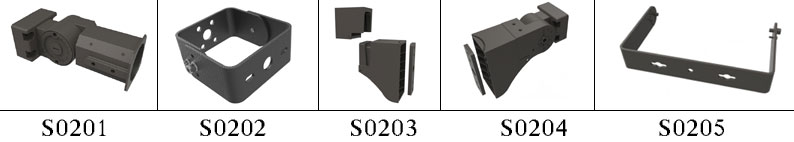

S0201: Rotatable street light arm adapter. internal diameter is 61mm. Materials are Aluminum die-casting. N.W is 1.3 kgs.
S0202: Rotatable light bracket. Materials are Q235B. N.W is 1.3 kgs.
S0203: Fixed street light arm adapter. suitable for round and square poles. Materials are Aluminum die-casting. N.W is 1.0 kgs.
S0204: Rotatable street light arm adapter. suitable for round and square poles. Materials are Aluminum die-casting. N.W is 1.7 kgs.
S0205: Rotatable light bracket. Materials are Q235B. N.W is 1.6 kgs.
S0201 and S0202 and S0203 and S0204 can assemble in on our light body before delivery.
Advantages for UL/DLC Listed LED Shoebox Light SL02 series:
-Top brand LEDs to ensure the lighting quality and life timeEven Ts at 105 degrees Celsius L70 lifetime is still more than 48000 hours. (> 5 years).
-Unique and professional light body structure design.
-Professional lens design for TYPE III or TYPE IV or TYPE V.
-High quality die-casting cool fin design.
-Innovative driver box design.
The stronger body with high-pressure die-cast aluminum alloy housing with less weight ensures impact grade reaches>IK09
High-efficiency coatings, paint and metal parts successfully pass 600 hours salt spray test.
High transparent optical lens and tempered glass, different types of lens for choice.
With surge protector, the lamp can reach Class II (10kv) or Class II.
Enough space for installing more devices like Zigbee controller /wireless control system to establish smart city operation for energy conservation and environmental protection.
Internal components are configured according to customer requirement.
Customized configuration.
Daylight sensor control/ 1-10v dimming driver / timing control / solar control / nema socket.
