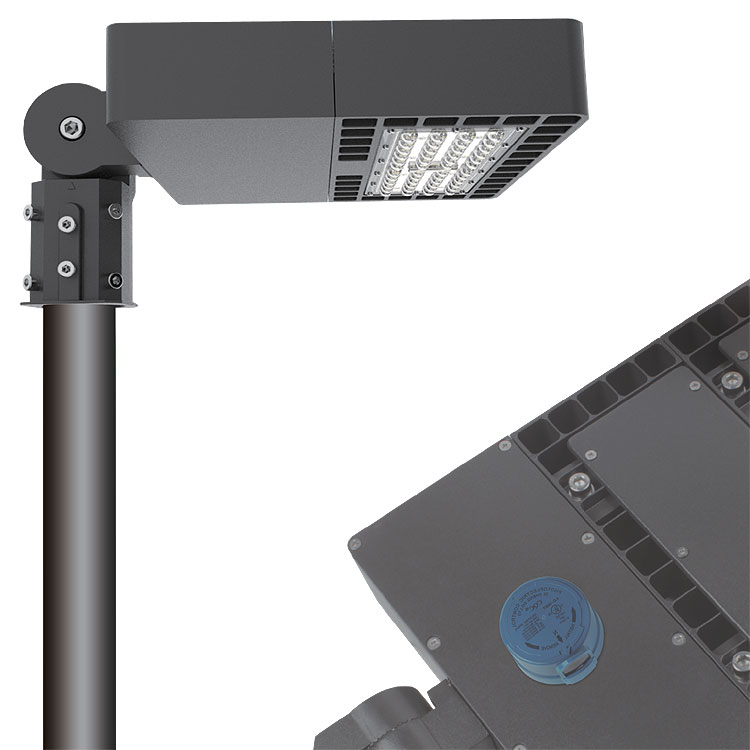

UL/DLC Listed LED Shoebox Lighting SL01

High ways, primary streets, throughways, secondary streets, driver ways, residential areas, parking lots, gardens and so on.
Environmental humidity: 10%-90%.
Environmental temperature: +50 to -30 Celsius.
Lifetime:50000 hours.
Input voltage: Meanwell AC90-305v /50-60Hz. or Sosen AC100-277v/ 50-60Hz.
Color temperature: 3000-3300K, 4000-4500K, 5000-5500K,6000-6500K is available.
Materials: Aluminum.
IP grade: IP 65.
Colour: Dark Gray or other.
Warranty: 5 years.


UL/DLC Listed LED Shoebox Lighting SL01 Series.

UL/DLC Listed LED Shoebox Lighting SL01 order SKU no.

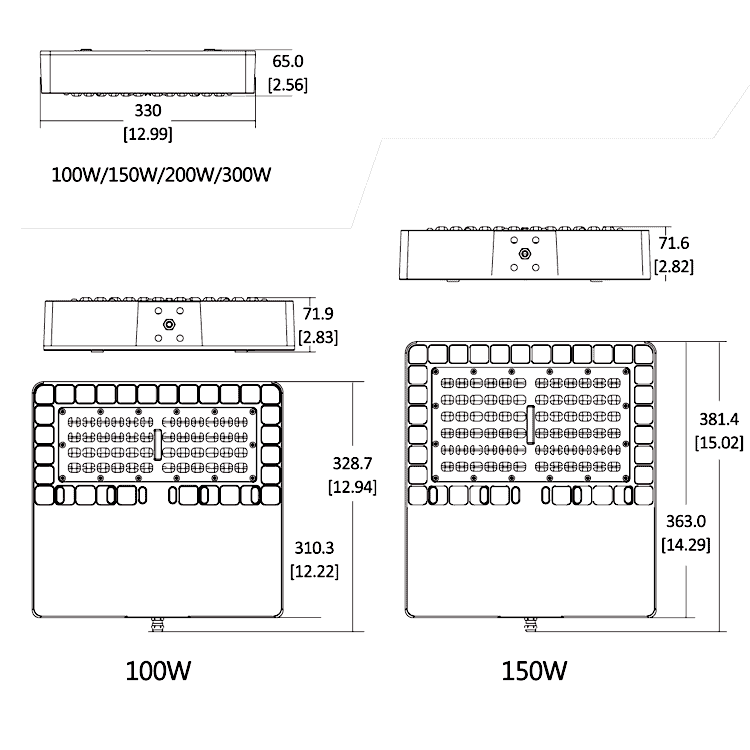

Order SKU: 168574001. 100W/11500 lm.  Products size 328.7*330*71.9mm; (48 pcs 3535 LED). G.W is 5.1 kg.
Order SKU: 168574002. 150W/17250 lm. Products size 381.4*330*71.6mm; (72 pcs 3535 LED). G.W is 5.9 kg.

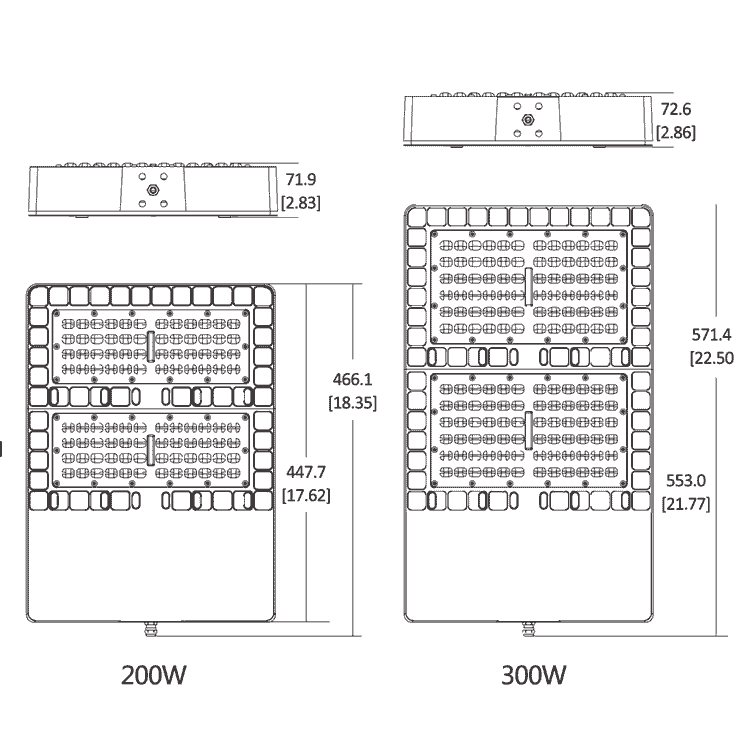

Order SKU: 168574003. 200W/23000 lm. Products size 466.1*330*71.9mm; (96 pcs 3535 LED). G.W is 7.5 kg.
Order SKU: 168574004. 300W/34500 lm. Products size 571.4*330*72.6mm; (144 pcs 3535 LED). G.W is 8.8 kg.

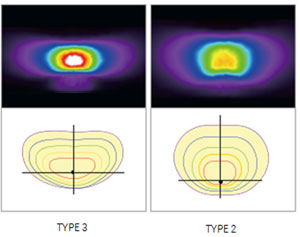

Beam angle: TYPE II or TYPE III.
LED brand: Samsung 3535.
Driver: Meanwell  (90-305v) or Sosen (100-277v).
SKD lighting fixtures available.

Please kindly order these adapters separately according to your exact requirement for LED shoebox lighting.
UL/DLC Listed LED Shoebox Lighting

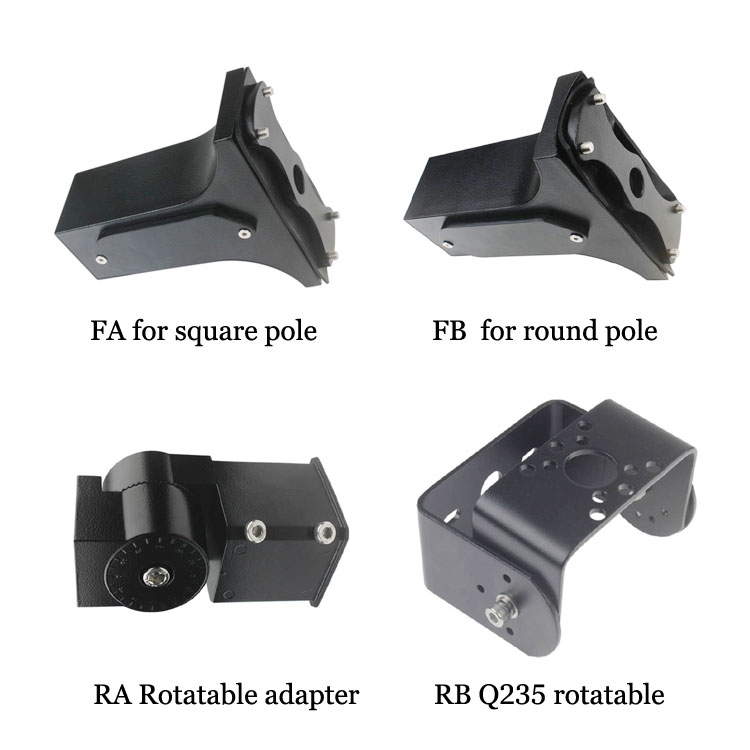

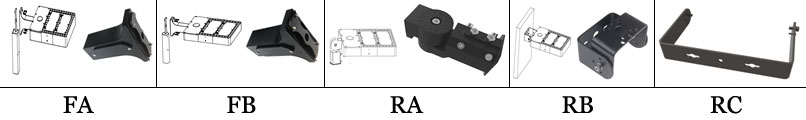

FA: Aluminum die casting for square poles fixing adapter.
FB: Aluminum die casting for round poles fixing adapter.
RA: Aluminum die casting for the 60mm poles rotatable adapter.
RB: Q235 rotatable installation adapter.
RC: Floodlight bracket.

-Advantages for UL/DLC Listed LED Shoebox Lighting SL01:
-Top brand LEDs to ensure the lighting quality and life timeEven Ts at 105 degree Celsius, L70 lifetime is still more than 50000 hours. (> 5 years).
-Famous and classical shoebox lighting design. High-quality die-casting heatsink design. And no waterlogged and dust-free.
-Professional lens design for TYPE II and TYPE III.
If you need Samsung’s LM80 testing report, please feel free to contact us.

UL/DLC Listed LED Shoebox Lighting SL01 Features:

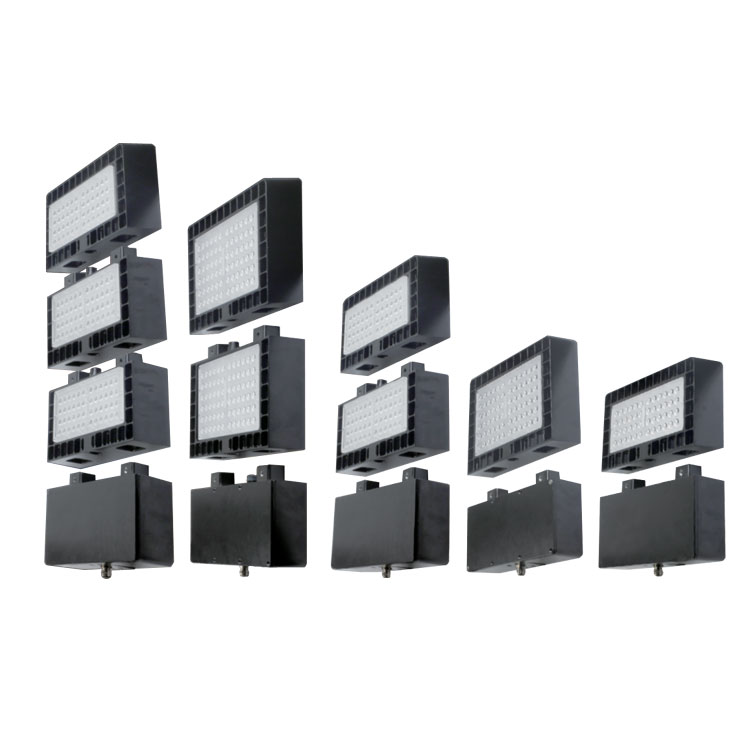

Modular assembly.
The stronger body with high-pressure die-cast aluminum alloy housing with less weight ensures impact grade reaches>IK09
High-efficiency coatings, paint and metal parts successfully pass 600 hours salt spray test.
High transparent optical lens and tempered glass, different types of lens for choice.
With surge protector, the lamp can reach Class II (10kv) or Class II.
Enough space for installing more devices like Zigbee controller /wireless control system to establish smart city operation for energy conservation and environmental protection.
Internal components are configured according to customer requirement.
Customized configuration.
Daylight sensor control/ 1-10v dimming driver / timing control / solar control / nema socket.

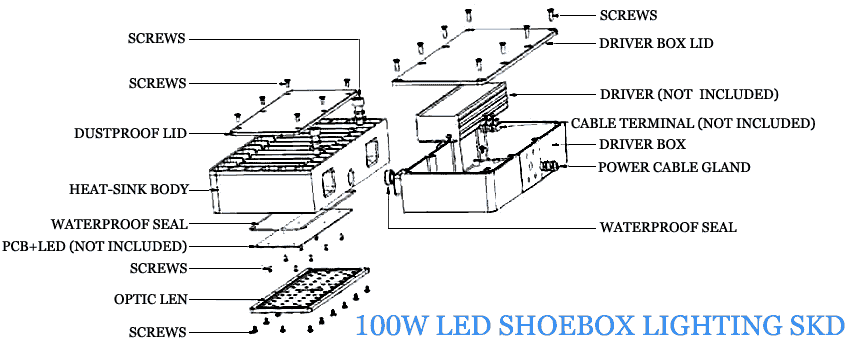

100W LED Shoebox Lighting SKD Structure Chart:
