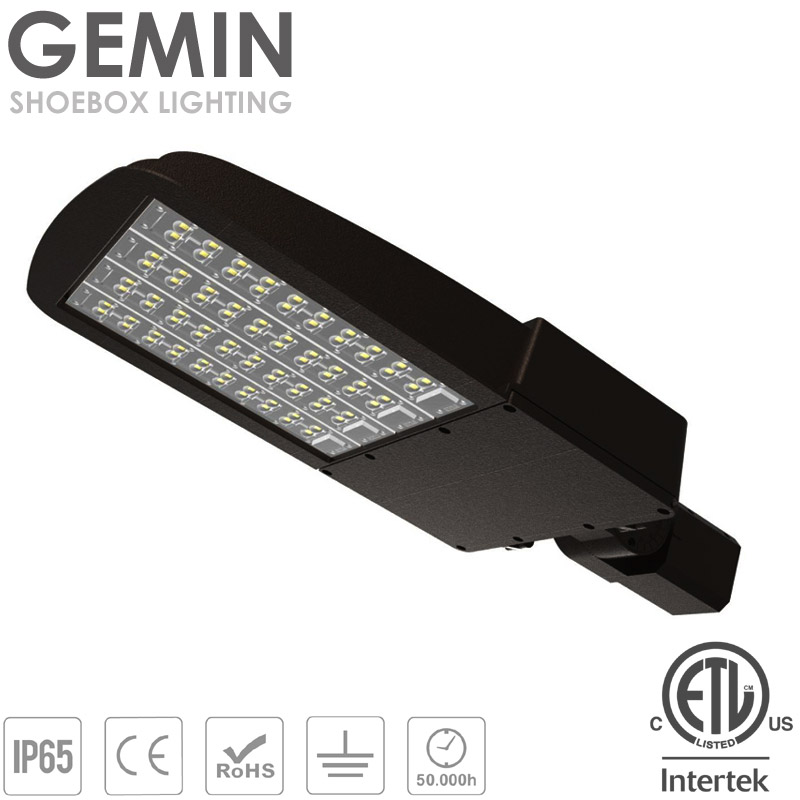

ETL listed Shoebox Lighting GEMIN
Applications：
Parking Lot.
Shopping Centers.
Residential Areas.
All-Area/Flood Applications.
LED Driver:
Universal Input Voltage 120-277 Vac 50/60 Hz.
Optional Input Voltage 249-528 Vac 50/60 Hz.
A line to Earth 10KV Surge Protection.
IP67 Rated LED Driver.
Power Factor > 0.90.
THD < 20%.
CRI > 70.
CCT : 4000K/5000K.
Description
ETL listed Shoebox Lighting GEMIN Features:
ETL listed Shoebox Lighting GEMIN Surface oxidation of aluminum profile, High-Pressure Die-Cast, Powder Coated Aluminum driver box.
Polycarbonate optical lens: Type III medium.
Slip Fitter standard, Mounting Arms or swivel pendant for optional.
Long-life, high-efficiency surface mounting LEDs.
We have integrated Motion Sensor for optional.
L70>50,000 Hours Rated Lifespan.
5-year Warranty.
Ambient Temperature -35 to 40 °C.
Fixture Protection Class IP65.
ETL Wet Location Listed.

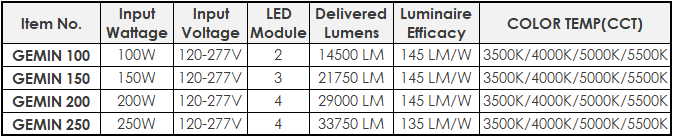

ETL listed Shoebox Lighting GEMIN Specifications:
GEMIN Shipping Data:
GEMIN 100: Net Weight is 7.8 KG. Package: 63*35*15CM/1 pcs.
GEMIN 150: Net Weight is 7.9 KG. Package: 63*35*15CM/1 pcs.
GEMIN 200: Net Weight is 8.3 KG. Package: 63*35*15CM/1 pcs.
GEMIN 250: Net Weight is 8.3 KG. Package: 63*35*15CM/1 pcs.

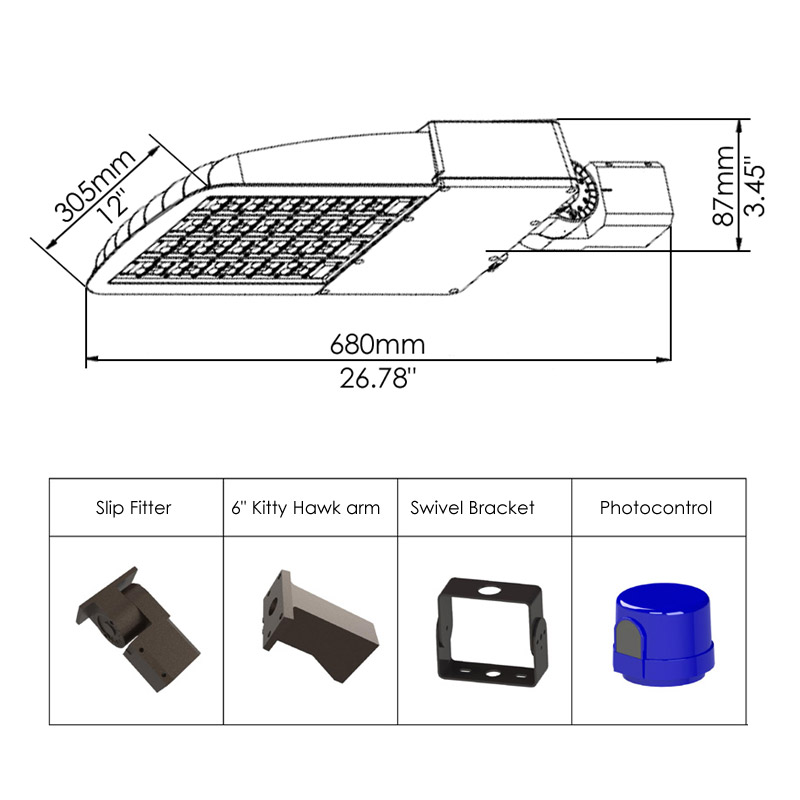

GEMIN Parts option:
Slip Fitter / 6″ Kitty Hawk Arm / Swivel Bracket / Photocontrol.

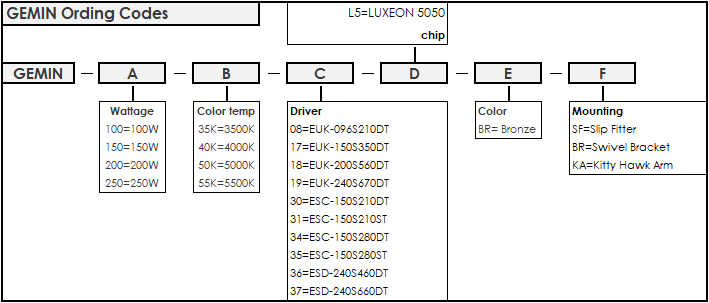

GEMIN-A-B-C-D-E-F
A: Wattage: 100=100W, 150=150W, 200=200W, 250=250W.
B: Color temperature：35K=3500K, 40K=4000K, 50K=5000K, 55K=5500K.
C: Driver: 08=EUK-096S210DT, 17=EUK-150S350DT, 18=EUK-200S560DT, 19=EUK-240S670DT, 30=ESC-150S210DT, 31=ESC-150S210ST, 34=ESC-150S280DT, 35=ESC-150S280ST, 36=ESD-240S460DT, 37=ESD-240S660DT.
D: Chip: L5=LUXEON 5050.
E: Coating color: DB=Dark Bronze. (custom color code).
F: Mounting: SF=Slip Fitter, BR=Swinel Bracket, KA=Kitty Hawk Arm.
Download File.
